How Mechanical Watches Work?
Share:
Mechanical watches are timekeeping instruments powered entirely by mechanical energy. Unlike quartz watches, which use a battery and an electronic oscillator, mechanical watches rely on springs, gears, levers, wheels, and carefully regulated motion. They are among the most fascinating inventions in horology because they turn stored spring energy into a steady display of seconds, minutes, and hours.
The origin of mechanical watchmaking goes back to Europe. The earliest portable spring-driven timekeepers appeared around the 15th century, while wearable watches became more common during the 16th century. These early watches were not highly accurate, but they introduced the basic concept of a small, portable mechanical timekeeper. A major improvement came in 1675, when Christiaan Huygens introduced the balance spring, a development that helped make portable watches far more accurate and practical.
At the heart of every mechanical watch is a simple idea: energy is stored, controlled, divided, and displayed. The watch stores energy in a spring, releases that energy through gears, controls the release with an escapement, regulates timing with a balance wheel and hairspring, and finally displays time through the hands on the dial.
The Mainspring: The Power Source
The mainspring is the engine of a mechanical watch. It is a long, thin strip of metal coiled inside a small drum called the barrel. When the watch is wound, the mainspring tightens and stores potential energy. As it slowly unwinds, it releases that energy into the movement.
In a manual-wind mechanical watch, the wearer winds the mainspring by turning the crown. The crown is the small knob usually found on the side of the case. Turning it transfers motion through the winding system and tightens the mainspring.

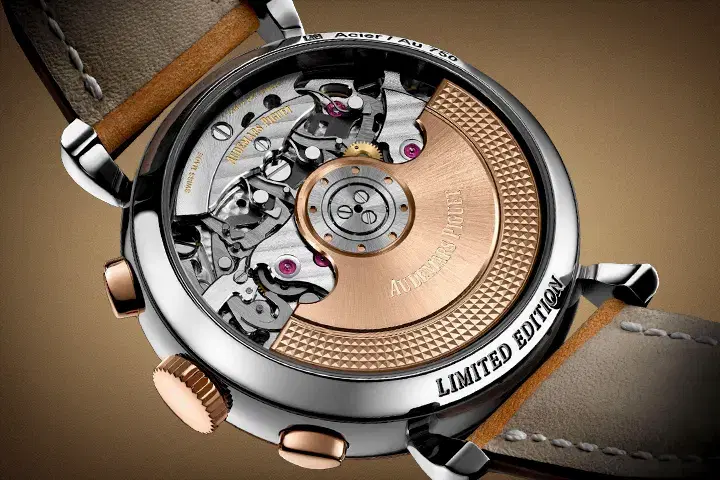

In an automatic mechanical watch, the mainspring is wound by a rotor. The rotor is a semicircular weight inside the watch that moves when the wearer’s wrist moves. As the rotor swings, it turns gears that wind the mainspring. This means an automatic watch can keep itself wound through normal daily wear.
The mainspring does not release energy evenly on its own. If it were allowed to unwind freely, the watch would run too fast at first and then slow down as the spring lost tension. The rest of the movement exists to control this energy and release it in a stable, measured way.
The Gear Train: Carrying and Dividing Energy
Once the mainspring begins to unwind, energy passes from the barrel into the gear train. The gear train is a series of toothed wheels and pinions that transfer power through the movement. These gears reduce speed, increase control, and divide motion into useful units of time.
The gear train connects the mainspring to the escapement and also helps move the watch hands. Different gears rotate at different speeds. One gear may complete a rotation once per hour, another once per minute, and another may drive the seconds hand.
This system is one reason mechanical watches are so impressive. The hands appear to move smoothly and simply on the dial, but underneath, many tiny parts are working together. Each wheel must be cut precisely, each tooth must engage properly, and friction must be minimized.
Mechanical watch movements often use jewels, usually synthetic rubies, as bearing surfaces. These jewels reduce wear and friction where rotating parts pivot. They do not make the watch valuable in the same way decorative gemstones do; their main purpose is functional durability and efficiency.
The Escapement: Controlling the Release of Power
The escapement is one of the most important parts of a mechanical watch. Without it, the mainspring would release its energy too quickly. The escapement acts like a gate, allowing power to escape in tiny, regular pulses.
The most common type in modern mechanical watches is the lever escapement. It usually includes the escape wheel, pallet fork, and balance wheel. The escape wheel is connected to the gear train. The pallet fork locks and unlocks the escape wheel one tooth at a time. Each unlocking action allows a small amount of energy to move forward.
This controlled release creates the familiar ticking sound of a mechanical watch. Every tick represents a small transfer of energy through the escapement. The escapement does two jobs at once: it prevents the gear train from spinning freely, and it gives tiny impulses to the balance wheel to keep it moving.
The Balance Wheel and Hairspring: The Timekeeper
The balance wheel and hairspring form the regulating organ of a mechanical watch. The balance wheel rotates back and forth, while the hairspring, also called the balance spring, pulls it back toward its center position. Together, they create a steady oscillating motion.
This motion is similar in purpose to the pendulum in a clock. A pendulum swings back and forth at a regular rhythm. In a wristwatch, a pendulum would not work well because the watch moves constantly, so the balance wheel and hairspring perform the same timing role in a compact form.
The hairspring was a major breakthrough in watch history. Huygens’ 1675 balance-spring design improved the accuracy of portable mechanical timekeepers by giving the balance wheel a more reliable rhythm.
Each swing of the balance wheel allows the escapement to unlock briefly. The escapement then gives the balance a small push to keep it oscillating. This cycle repeats thousands of times per hour. Many modern mechanical watches beat at 28,800 vibrations per hour, or 8 beats per second, though other frequencies such as 18,000, 21,600, or 36,000 vibrations per hour also exist.
The steadiness of the balance wheel is central to accuracy. If the balance oscillates too quickly, the watch gains time. If it oscillates too slowly, the watch loses time. Watchmakers regulate the movement by adjusting the effective length of the hairspring, the inertia of the balance wheel, or both.
The Dial Train: Turning Motion Into Readable Time
The mechanical movement would be useless if it did not display time clearly. This is the job of the dial train, also known as the motion works. The motion works translate the movement’s rotation into the movement of the hour and minute hands.
The minute hand usually makes one full rotation every hour. The hour hand moves more slowly, completing one rotation every twelve hours on a standard watch. The seconds hand may be driven directly or indirectly depending on the movement design.
The apparent simplicity of three hands on a dial hides a carefully calculated system. Gear ratios determine how fast each hand moves. These ratios must be exact so that sixty seconds become one minute, sixty minutes become one hour, and twelve hours complete a full dial cycle.
Manual vs Automatic Mechanical Watches
Mechanical watches are usually divided into two main categories: manual-wind and automatic.
A manual-wind watch must be wound regularly by hand. Depending on the movement, it may run for around one to several days on a full wind. The amount of time a watch runs after being fully wound is called its power reserve.
An automatic watch also has a mainspring, gear train, escapement, balance wheel, and hands, but it includes an additional self-winding mechanism. The rotor moves with the wearer’s wrist and winds the mainspring automatically. If worn regularly, an automatic watch can continue running without daily hand-winding. However, if left unworn long enough, it will stop and need to be wound or worn again.
Neither type is inherently better. Manual watches are often appreciated for their simplicity, thinness, and direct connection between wearer and movement. Automatic watches are valued for convenience and practicality.
Why Mechanical Watches Tick
The ticking sound of a mechanical watch comes from the escapement. As the pallet fork locks and unlocks the escape wheel, it produces small impacts. These impacts create the tick-tock rhythm associated with traditional watches.
The speed of ticking depends on the movement’s beat rate. A watch beating at 18,000 vibrations per hour ticks five times per second. A watch beating at 28,800 vibrations per hour ticks eight times per second. A higher beat rate can make the seconds hand appear smoother, though it may also create more wear and require careful engineering.
A mechanical watch does not truly move continuously. Even when the seconds hand looks smooth, it is actually advancing in very small steps. Quartz watches typically tick once per second, while mechanical watches usually tick several times per second.
Accuracy and Regulation
Mechanical watches are marvels of engineering, but they are affected by physical conditions. Their accuracy can change because of temperature, gravity, shock, magnetism, lubrication condition, and wear.
Gravity affects the balance wheel differently depending on the position of the watch. A watch may run slightly differently when dial-up, crown-down, or crown-up. This is why high-quality watches are often adjusted in multiple positions.
Temperature can affect the hairspring and other metal parts. Modern materials have reduced this problem, but it remains part of mechanical watch design. Magnetism can also interfere with the hairspring, causing coils to stick together and making the watch run fast.
Lubrication is another important factor. Mechanical watches contain many moving parts, and oils reduce friction between them. Over time, lubricants can dry out, spread, or degrade. This is why mechanical watches need periodic servicing.
Complications: More Than Telling Time
Explore the
Biggest Pre-Owned Collection of Luxury Watches
A basic mechanical watch shows hours, minutes, and sometimes seconds. Additional functions are called complications. Common complications include the date, day, moon phase, chronograph, dual time zone, annual calendar, perpetual calendar, power-reserve indicator, and minute repeater.
A date complication advances a disc once every 24 hours. A chronograph adds stopwatch functions with extra gears, levers, and pushers. A perpetual calendar can mechanically account for different month lengths and leap years, making it one of the most complex traditional watch complications.
Complications show the flexibility of mechanical watchmaking. They demonstrate that gears and springs can be arranged not only to measure time but also to calculate calendar cycles, elapsed intervals, and astronomical displays.
Why Mechanical Watches Still Matter
Mechanical watches are no longer the most practical way to tell time. A smartphone or quartz watch is usually more accurate and less expensive. Yet mechanical watches remain important because they represent craftsmanship, engineering, tradition, and design.
A mechanical watch is a miniature machine worn on the wrist. It can run without a battery, using only stored spring energy and precisely controlled motion. Many collectors appreciate the human skill involved in finishing, assembling, adjusting, and regulating these tiny mechanisms.
Mechanical watchmaking also connects modern wearers to centuries of horological development. From early spring-driven portable clocks to the balance-spring breakthrough of the 17th century and today’s refined wristwatch movements, the mechanical watch represents a long history of problem-solving and precision engineering.
Conclusion
A mechanical watch works by managing energy through a chain of carefully coordinated parts. The mainspring stores power. The gear train carries and divides that power. The escapement releases it in controlled pulses. The balance wheel and hairspring regulate the rhythm. The dial train turns that rhythm into readable time.
Its origin lies in European mechanical timekeeping, with portable spring-driven watches appearing from around the 15th and 16th centuries. Its modern accuracy was greatly shaped by the 1675 balance-spring innovation associated with Christiaan Huygens. Since then, mechanical watches have evolved from rough early timekeepers into refined instruments of precision and craftsmanship.
In simple terms, a mechanical watch is a tiny engine for measuring time. It does not rely on electronics or batteries. Instead, it uses tension, motion, resistance, rhythm, and mechanical control. That combination of science, art, and tradition is why mechanical watches continue to fascinate people centuries after their invention.
