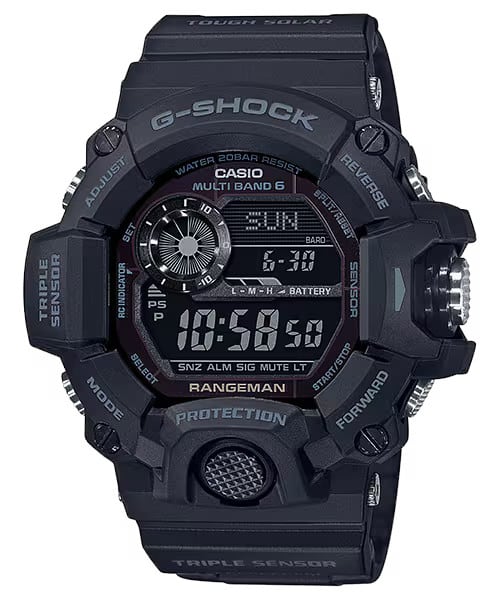

G-Shock GW9400-1B Master Of G Land
MASTER OF G RANGEMAN
A model equipped with the triple sensor from the G-SHOCK RANGEMAN series, which supports men facing harsh natural environments.
It comes equipped with a triple sensor for altitude, orientation, and atmospheric pressure/temperature, and has a button guard cylinder structure that enables smooth and accurate operation by using a metal cylinder guard on the sensor button part that displays information. Comes equipped with a sensor button which, when pressed, displays the previous sensor mode, and features three notification sound levels, enabling intuitive operation. The inverted LCD makes it entirely black while the orange accents give it a powerful, tough design that exudes durability and gives the watch an edge.
A G-SHOCK RANGEMAN equipped with functions necessary for activities in extreme environments.
TECHNOLOGY
Triple sensor ver.3
Equipped the Triple Sensor Ver.3 in a shock-resistant structure.
Three small sensors measure orientation, altitude, barometric pressure, temperature, and direction at high speed and with high accuracy, providing the information necessary to survive in harsh conditions.
Direct button for quick and reliable measurement
Time Stamp Button
The time stamp function allows the ability to save measurement results number of altitude, barometric pressure, temperature, and direction up to 40 time logs with time. And can be used for activity records and action plans.
Direct Sensor Button
The sensor measurement buttons are concentrated in one place and enlarged. With a single push of the button, available to move to the measurement immediately. Three type of beeps indicate the measurement mode, and the mode can be changed by blind operation.
Stopwatch Button
1/100 Second Stopwatch with Direct Access Measuring capacity. It can be measured with a dedicated button, and is useful for survival training
Altimeter, Digital Compass, Barometer / Thermometer
Cylindrical button guard structure
The new button guard structure enables smooth and precise button operation.
In addition to mitigating side impact, which is a weak point of button shafts, the pipe shape serves as a guide and contributes to the stability of button stroke.
The button shaft is fitted with a gasket to ensure airtightness and 200 meter water resistance.
Stainless Button Pipe
A stainless steel metal pipe is used for the direct sensor button.
The sensor measurement buttons which are frequently used and require reliable operation, are guarded more firmly.
Sensor feature
Altimeter
Measuring range: -700 to 10,000 m (-2,300 to 32,800 ft.)
Measuring unit: 1 m (5 ft.)
Altitude Memory Function:
Manual Readings: 40 records, each containing date and time, direction angle, altitude, barometric pressure, and
temperature
Auto Save Data: High altitude, low altitude, cumulative ascent, cumulative descent (1 value each)
Others: Relative altitude readings (-3,000 to 3,000 m)
Selectable measurement interval: 5 seconds or 2 minutes
*1 second for first 3 minutes only
*Changeover between meters (m) and feet (ft)
Barometer
Display range: 260 to 1,100 hPa (7.65 to 32.45 inHg)
Display unit: 1 hPa (0.05 inHg)
Atmospheric pressure tendency graph (past 42 hours of readings)
Atmospheric pressure differential graphic
Barometric pressure tendency information alarm (beep and arrow indicate significant changes in pressure)
*Changeover between hPa and inHg
Digital compass
Measures and displays direction as one of 16 points
Measuring range: 0 to 359°
Measuring unit: 1°
60 seconds continuous measurement
Graphic direction pointer
Bidirectional calibration
Magnetic declination correction
Bearing memory
Thermometer
Display range: -10 to 60℃ (14 to 140℉)
Display unit: 0.1℃ (0.2℉)
*Changeover between Celsius (℃) and Fahrenheit (℉)
World time
- World time
- 31 time zones (48 cities + coordinated universal time), daylight saving on/off
Sunrise/sunset display
- Sunrise, sunset time display
- Sunrise time and sunset time for specific date, daylight pointers
Stopwatch
- 1/100-second stopwatch
- Measuring capacity: 999:59'59.99''
- Measuring modes: Elapsed time, split time, 1st-2nd place times
Timer
- Countdown timer
- Measuring unit: 1 second
- Countdown range: 24 hours
- Countdown start time setting range: 1 minute to 24 hours (1-minute increments and 1-hour increments)
Alarm/hourly time signal
- 5 daily alarms (with 1 snooze alarm)
- Hourly time signal
Light
- LED backlight (Super Illuminator)
- Full auto LED light, selectable illumination duration, afterglow
Light color
- LED:White
Calendar
- Full auto-calendar (to year 2099)
Mute feature
- Button operation tone on/off
Energy saving feature
- Power Saving (display goes blank to save power when the watch is left in the dark)
Battery display/alert
- Battery level indicator
Run time
- Approx. battery operating time:
- 8 months on rechargeable battery (operation period with normal use without exposure to light after charge)
- 23 months on rechargeable battery (operation period when stored in total darkness with the power save function on after full charge)
Accuracy
- Accuracy: ±15 seconds per month (with no signal calibration)
Other features
- 12/24-hour format
- Regular timekeeping:
- Hour, minute, second, pm, month, date, day
Sensor feature details
- Manual data recording of up to 40 records (altitude, barometric pressure / temperature, bearing, time (Time Stamp))
Time adjustment details
- Time Calibration Signals
- Station name: DCF77 (Mainflingen, Germany)
- Frequency: 77.5 kHz
- Station name: MSF (Anthorn, England)
- Frequency: 60.0 kHz
- Station name: WWVB (Fort Collins, United States)
- Frequency: 60.0 kHz
- Station name: JJY (Fukushima, Fukuoka/Saga, Japan)
- Frequency: 40.0 kHz (Fukushima) / 60.0 kHz (Fukuoka/Saga)
- Station name: BPC (Shangqiu City, Henan Province, China)
- Frequency: 68.5 kHz
- Time calibration signal reception
- Auto receive up to six* times a day (remaining auto receives canceled as soon as one is successful)
- *5 times a day for the Chinese calibration signal
- Manual receive
- The latest signal reception results
